MH-1

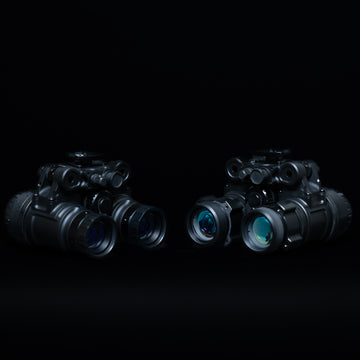

The MH-1 is our latest housing innovation at Low Light Innovations and the pinnacle of our housing line. Crafted from aerospace-grade magnesium and titanium alloys, the MH-1 is a perfect blend of ruggedness and lightweight design, tipping the scales at just 15.3 ounces in its lightest configuration. The MH-1 is truly modular, allowing users to swap power supplies in minutes, choosing between CR123A, AA, and more. Its modularity extends to the ability to split the device into two monoculars using our new Modular Bridge System (MBS). What sets the MH-1 apart is its manual gain feature, which can be achieved via direct plug-in without any soldering, ensuring your tube's warranty remains intact.

FEATURE LIST:

Rotational pod shutoff

Manual gain control (4 pin plug-in)

Dual power IR illumination

IPD stops

Modular pods (Ability to split into monos)

Onboard power (Modular)

External power (Modular

Modular mounting platforms (Dovetail/Ball detent)

Adjustable pod tension

Customize your MH-1 housing with your choice of colors and configurations. Choose from black, FDE, ranger green, or grey, and select the perfect optics variant for your needs, including RPO UL Optics, Elbit Mil-Spec Optics, and Anvis.

SPECIFICATIONS:

• POWER SOURCE: MODULAR
• FOCUS RANGE: 9.8” TO INFINITY
• OPERATION TIME: APPROXIMATELY 25-90 HOURS
• MAGNIFICATION: (1X) ONE POWER
• FIELD OF VIEW: 40 DEGREES
• INTERPUPILLARY ADJUSTMENT: 51 TO 78MM
• DIOPTER ADJUSTMENT: -6 TO +2
• EYE RELIEF: 25MM
• WEIGHT: 434g
• WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS
• INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE

Made in the USA based in part on components from overseas
